EEx p explosion-protected equipment For zone 2
A7-3702-1100/….
EEx p explosion-protected equipment
For zone 2

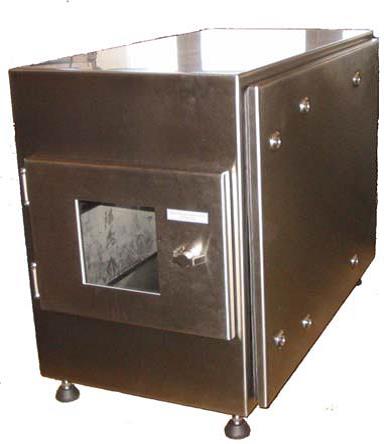

a) EEx p Combi panel:
Dimensions: 500 W x 550 H x 700 D mm
Stainless steel 1.4404,
for Ex p equipment,
Protection: Ex II 3G Ex pz IIC T4
Verification certificate: BVS 11 ATEX E 145
Guideline: ATEX 94/9/EG
Minimum overpressure: 2 bar
Volume: 146 Litre
Power supply: 230V / 16 A
Max. heat dissipation: 515W
Temperature range: -20°C to + 40°C
EEx p combi panel designed for label printers.
specification Ex p combi panel:
• Front side one door for taking print outs, door can be opened for 15 seconds, after 15 seconds
the Ex p system switches all internal equipment off
• Right side one maintenance door

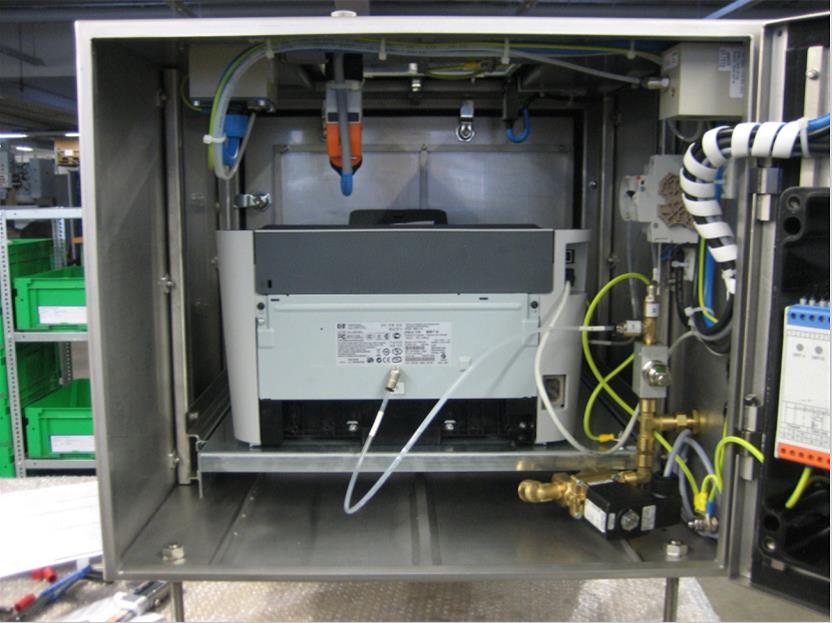

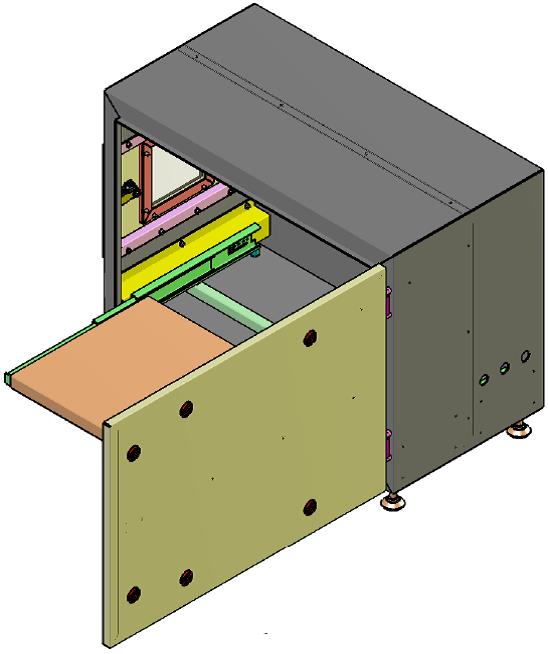

• Inside one pull-out drawer for label printer, pull-out by opened door
• Behind 3 cable glands for power and data line, pressure reducer with manometer,
bypass-key-bridge for maintenance
– explosion protection during activated bypass not available –
• Internal power socket, automatically controlled by controller SILAS unit
